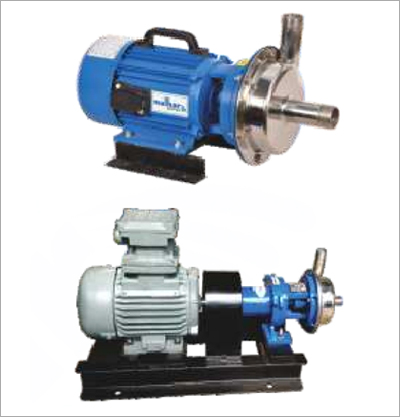

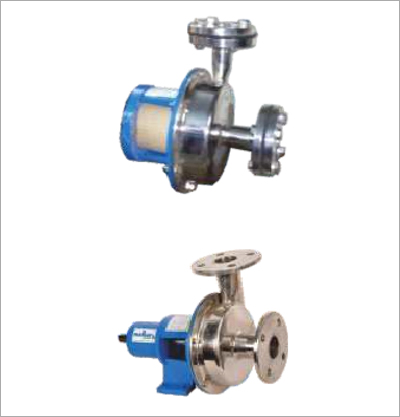

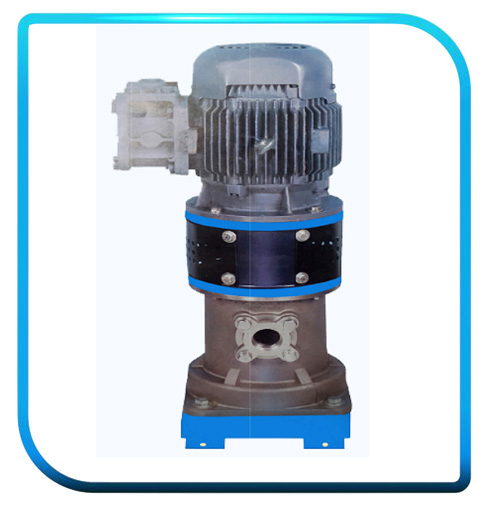

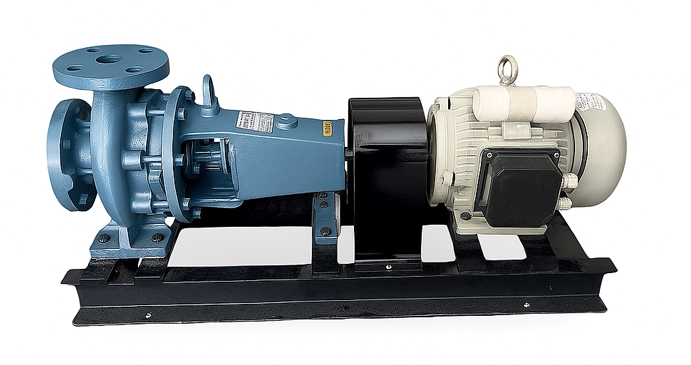

Stainless Steel Centrifugal Pump

"CF" Series

Application

• Milk, Cream, Butter Milk, Condensed Milk
• Fruit juice, Beer, Wine, Sugar Syrup
• Vitamin Solutions, Sugar & Confectionery.
• RO Water, DM Water, Pure Water. Water for Injection (WFI)
• Vegetable Oil, Mineral Oil, Lube Oil etc.
• Pharmaceutical Formulations, Syrup etc.
• Alkaline Solution / Alcoholic Drinks.
• Acids, Fine Chemicals
• Bottling Plants, Soft Drinks & Distillery
• Food Processing / Liquid Food Stuffs
• Colour dyes and Pigments / Paints
• Descaling Applications, Paper & Cement Industries
• Water Treatment Plants
• Detergent, Soaps, Paste & Shampoo
• Textile Sizing, Dyeing & Finishing Systems
• Natural Cellulose Fiber / Synthetic Fiber System
• Hot & Cold Water Pumping.

Features

• As all pumps are made from rolled stainless steel, mechanical properties are far superior than cast material.
• Pore free, non-pitting and non-adhering smoother surface, so lesser friction losses, and lesser service corrosion.
• Super finished surface also ensures no ingress or emission of germs or impurities during pumping or idling which is a basic requirement of sterile / hygienic application.
• Pump can handle liquids having viscosities up to 1500 centipoises.
• Pumps are highly energy efficient and requires lesser NPSH to function without cavitation.
• The pumps can work under a vacuum of 720 mm of Hg, suitable for vacuum evaporators.
• Pumps are available with cored/semi open impellers.
• The best elastomers are used in the pumps to provide optimum resistance for high temperatures and chemicals.
• Minimum working / rotating parts.
• Safe and quiet operation levels.
• Gentle product handling with lower maintenance and downtime cost.
• Dynamic combinations of seal faces as per customer's requirement (single seal / double seal, seal external cooling ).
• Suitable for standard motor or flange type or foot cum flange type motor or engine
• Monoblock or bare pumps or with trolley.
• Also with flame proof motors.
• Various types of connection like - triclove joints SMS, flanges or threaded nipple/coupling.
• Pumps with adjustable legs, available on request.
• Special bearing for hot water application available on request.

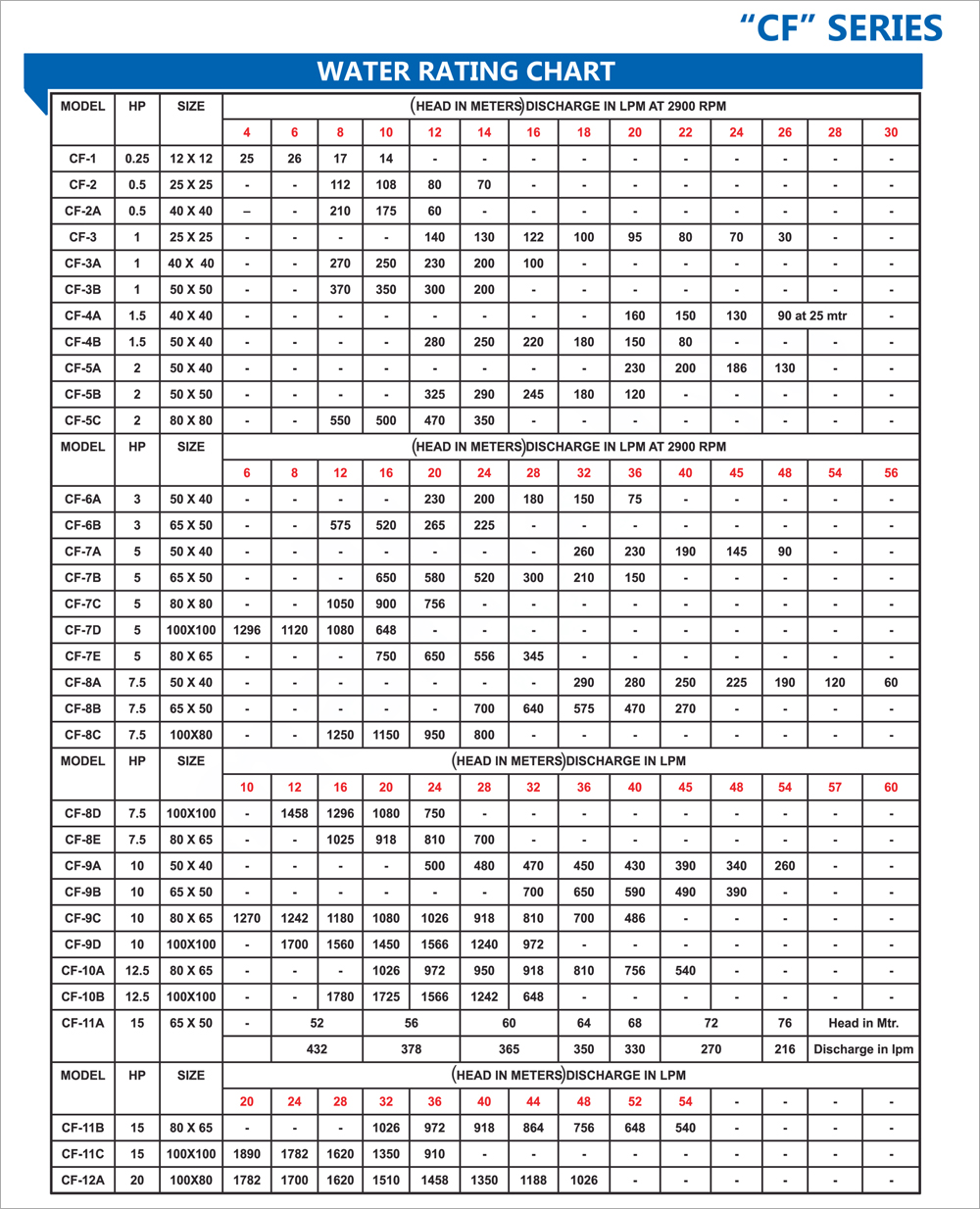

Range

Size : 12 MM TO 100 MM

Head : 03 Meters to 76 Meters

Capacity : Up to 1890 Lpm

Material Of Construction

SS 304/ SS 316/ SS 304 L / SS 316 L

Seal silicon carbide or as per customer's requirement.
